Hydraulic Cut Off Saws
Champions in Depth
HYCON Handheld Cut Off Saws
-
HCS14
7.4kg without disc/hose, 350mm blade diameter, cut depth 137mm, 20-30lpm, working pressure 120bar, max pressure 172bar
-

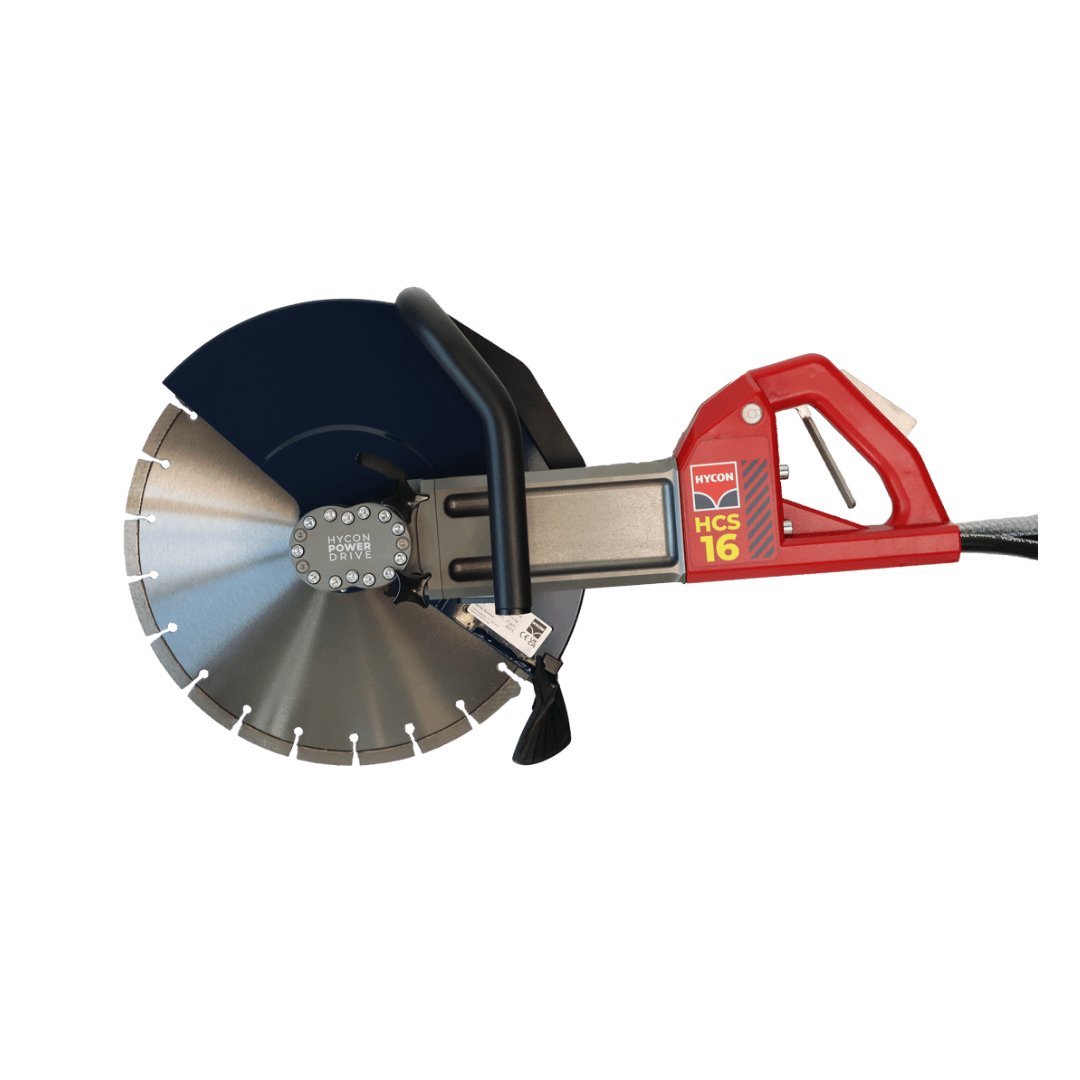

HCS16
7.8kg without disc/hose, 400mm diameter blade, cutting depth 16mm, working pressure 120bar, max pre sure 172bar, 20-40lpm
-
HCS18
8.1kg without hose/disc, blade diameter 450mm, cutting depth 187mm, 20-40lpm, max pressure 172bar, working pressure 120bar
-
HCS20
9.2kg without hose/disc, blade diameter 500mm, 30-40lpm, working pressure 120bar, max pressure 172bar
The HYCON hydraulic cut-off saws are made for pro-cutters. Being unaffected by water, dust, and slurry, the tools are incredibly sturdy and will work even in the most demanding environments.
The HYCON cut-off saw is available in four variants: HCS14, HCS16, HCS18, and HCS20 – all built for rugged use day after day – without breakdowns. The hydraulic direct drive motor makes it perfect for operation in the harshest working conditions, and the portability of the power pack ensures excellent flexibility. Just place it in the back of a van and go.
The tool automatically cuts off if the disc jams, meaning no injury to the operator. All saws can be used for horizontal and vertical cutting and will
work with standard diamond hand-cutting blades for asphalt or reinforced concrete. Abrasive or rescue diamond blades can cut off steel pipes, beams, or rebars.
The HCS 16 and HCS 18 saw can easily be mounted on HYCON’s SawEZ rail system for easy and accurate cutting on walls. Change to the HRS ring saw for deeper cutting in the same cutline.
The HYCON Motor
The unique HYCON designed motor in
high-strength aluminum ensures maximum power at low weight.
A no-nonsense design - designed for each individual saw bearing customer need in mind. With higher torque and high reliability
this motor is second to none.
Additional features
▶ Low weight for operator comfort
▶ Built-in water line
▶ Hydraulic-driven means no exhaust gasses close to the operator
▶ Designed for both vertical and horizontal use
▶ Perfect for all work conditions – dusty, wet, and underwater.
▶ All parts run in oil – ensuring long product life
▶ High-quality motor with direct drive for low maintenance – especially compared to belt-driven 2-stroke engine saws
HYCON Oil Flow Divider - HFD
The HYCON HFD Oil Flow Divider replace the need for power packs and is perfect to drive all HYCON tools on worksites where there already is an hydraulic machine like a backhoe, skidsteer or mini excavator in place.
Simply connect the preset HFD to the Hydraulic Power Take Out (PTO) and you are assured correct flow, pressure and rotation on saws, pumps and other tools needed on the jobsite.
The HYCON oil flow divider has 3 built-in functions:
Output oil flow control by the build in flow regulation valve.
Maximum tool working pressure ensured by a pressure relief valve.
Ensures the correct oil flow direction by a check valve.
DOWNLOAD CUT OFF SAW BROCHURES
